Description

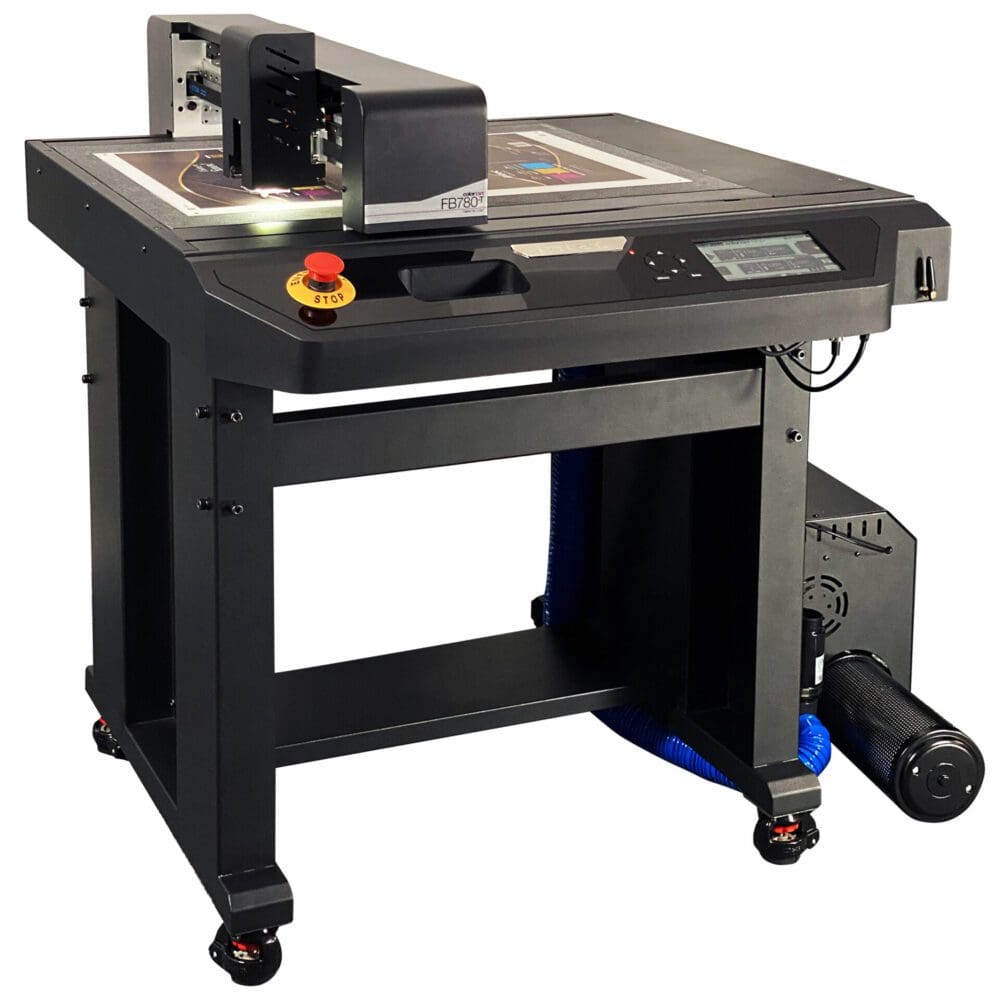

The Morgana ColorCut FB780-T digital die flatbed cutter.
ColorCut T-SERIES digital die flatbed cutter. Powerful simultaneous creasing and cutting with its dual tool drag cutting and superb tangential wheel creasing.
Key features:

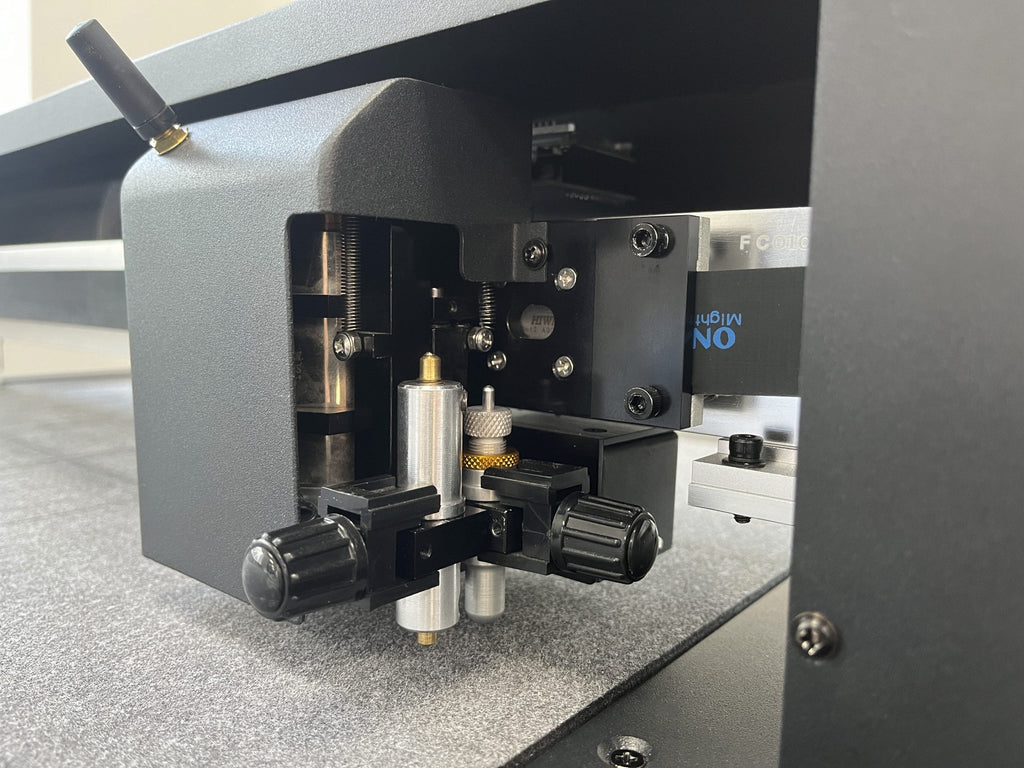

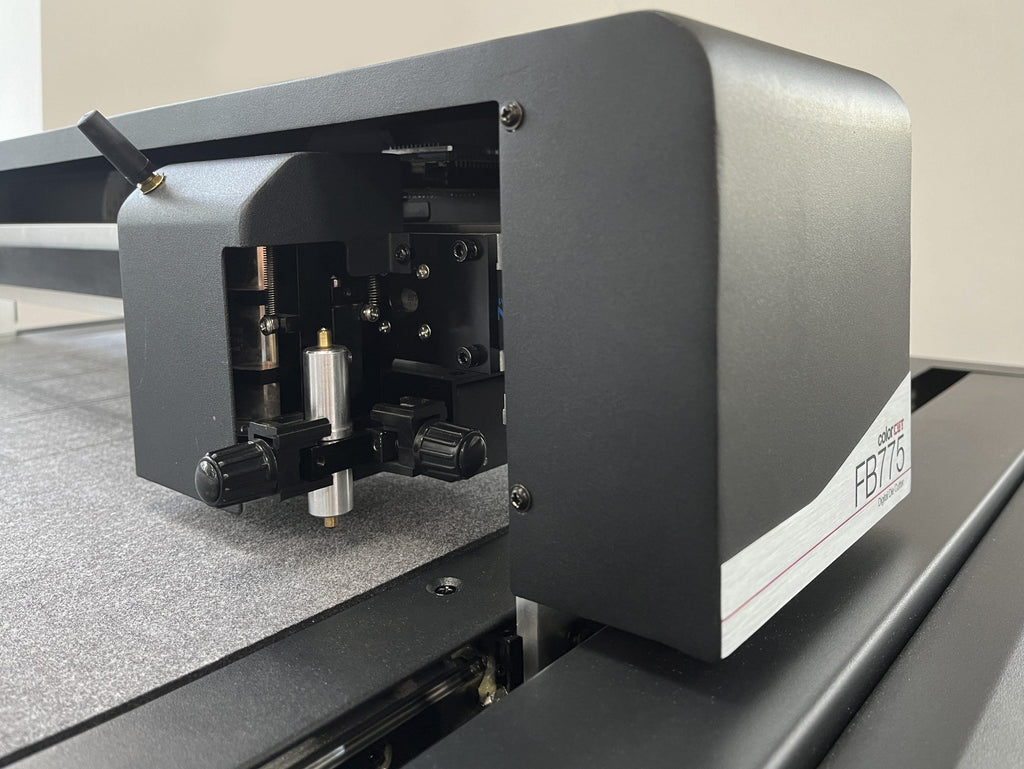

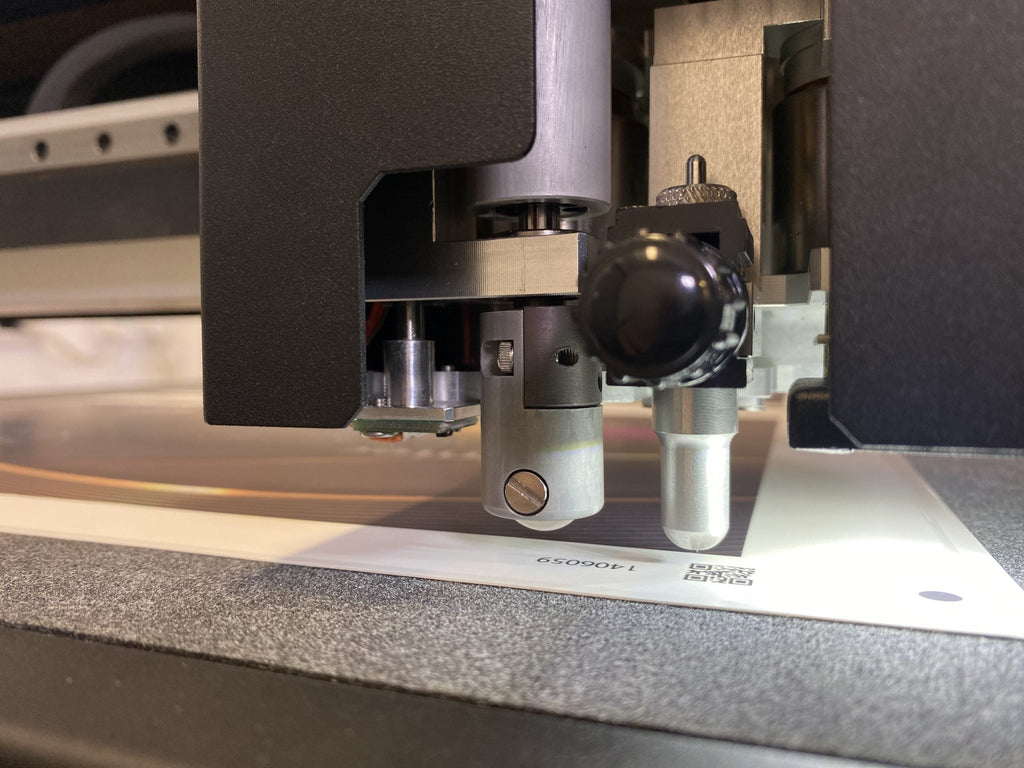

• Dual tool creasing & cutting head
• QR code job recognition system
• Run jobs from USB drive or computer
• Suction hold-down with vacuum fan
• Software, stand and silencer included
Cut force up to 1kg
Crease force up to 2.5kg
Cut speed up to 1,200mm/s
Media thickness:
Up to 800-1,000micron on selected media
Media size:
up to 2 x SRA3 or B2 sheets
Specifications
Morgana ColorCut FB780-T
Maximum media area
580mm x 800mm
Effective cutting area
480mm x 660mm
Size
915mm
Depth
1065mm
Height
1105mm
Weight
170kg (packed including vacuum fan)
Max Speed
Fast Mode: 1,200mm/s. Standard Mode: 960mm/s. High Definition: 750mm/s.
Max Cutting Depth
Paper/card up to 600 micron/600gsm, Max. depth 1mm (low density substrate ie. Foamboard), High Density Substrates: PVC – up to 0.4mm, PET – up to 0.3mm, magnetic sticker – up to 600µ
Cutting force:
Tool 1: Cut – up to 1,000gf (1Kg)
Creasing force
Tool 2: Crease up to 2,500gf (2.5Kg)
Data Buffer
PC / Mac
Optional wheels available:
Medium (0.55) Wide (0.95)
PC / Mac Tooling
Twin head (1 x cutter 1 x creaser)
Power Supply
Cutter
110V 220V
Vacuum pump
750W
Manufacturer: Intec
Model: FB-780
