Description
The POLAR PW-1 pile turner is mainly employed for handling the half-size format and works at a high speed saving cost and power.

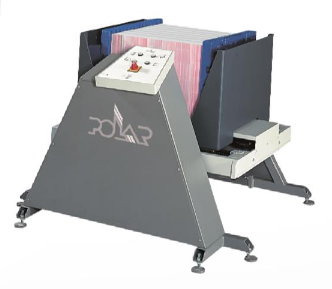

The POLAR Pile Turner PW-1 picks up the pile on one side of the machine, sandwiched between two platforms, rotates it on a horizontal axis and puts it down on the opposite side.
The Mohr Pile Turner PW-1 turns the material both automatically and fast.
Customer benefits
·
There are no long waiting times caused by manual re-stacking
·
Saves the material and prevents damages
·
Improves ergonomic conditions, because the lifting of heavy loads is avoided
Description of the machine
The POLAR PW-1 pile turner is mainly employed for handling the half-size format and works at a high speed saving cost andpower. The pile to be turned is moved onto the platform from one side of the unit. Two pushbuttons must be pressed to close the platform. After another key is pressed the platform is turned around its horizontal axis and onto the opposite side of the unit. Two pushbuttons are pressed (and kept pressed) to open it again. Finally, the turned stack can be moved out of the platform. Any damages or markings that cannot be avoided when the material is re-stacked manually are almost completely ruled out by automatic reversal.
The POLAR PW-1 pile turner must be fastened to the floor with anchors.
Technical data
Format max. 640 × 740 mm | 25.20 × 29.13 in
Size of platform 675 × 836 mm | 26.57 × 32.91 in
Pile height, min. (incl. 2 pallets) 470 mm | 18.50 in
Pile height, max. (incl. 2 pallets) 1,255 mm | 49.41 in
Carrying capacity, max.500 kg | 1,102 lbs
