Mamo Veladuo Double-Sided Roll Automatic Laminator

Veladuo

Fully automatic single and double side laminator, designed for simple and efficient operation, capable of supporting intensive work runs .Veladuo ensures a wide range of paper formats and supports paper up to 500 g/m2. With a working speed up to 10 m/min, it guarantees high-level performance. The high pile vacuum feeder allows automatic operations without operator supervision.

With Veladuo, a perfectly laminated document is always guaranteed, thanks to the pressure applied by the pneumatic system, which is fully adjustable according to the job requirements. The machine is equipped with both vacuum feeder and bursting system, which allows a fully automatic laminating process either on single and double side lamination.

An intuitive interface is available through the 7” touchscreen display, where all the job settings can be fully customized according to needs. Among the features of the new software, the possibility to obtain production reports

and integrating the machine in an Industry 4.0 perspective. The innovative user interface allows an optimal user experience by guiding the operator in setting the optimal parameters required for each process with extreme ease.

The laminator is equipped with a high-pile suction feeder that ensures efficient handling of various paper weights. Precise adjustments of the air flow allows to process even the most challenging electrostatically charged papers. Its patented suction system optimizes sheet pickup, even with slippery papers, and operates with low noise, as it does not require a vacuum pump. This feeder can accommodate sheets up to 999 mm in length and a stack height of 150 mm, enhancing the machine’s versatility for a wide range of laminating needs and reliability in high-demand environments.

Sheet separation:

The laminating sheets are automatically separated and stacked on the output tray.

Foiling capabilities:

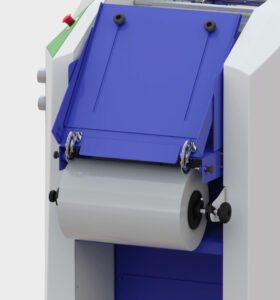

The foil rewinder allows even more flexibility, handling not just lamination but also foil sleeking.

De-curl system:

Significantly improves the flatness of the sheet on single side lamination, ensuring smoother and more professional-looking documents.

Electrostatic mobility

Thanks to ESD wheels, voltage peaks are discharged in a controlled manner, without any consequences. Mobility helps increase worker productivity and organize space more efficiently..
