Description

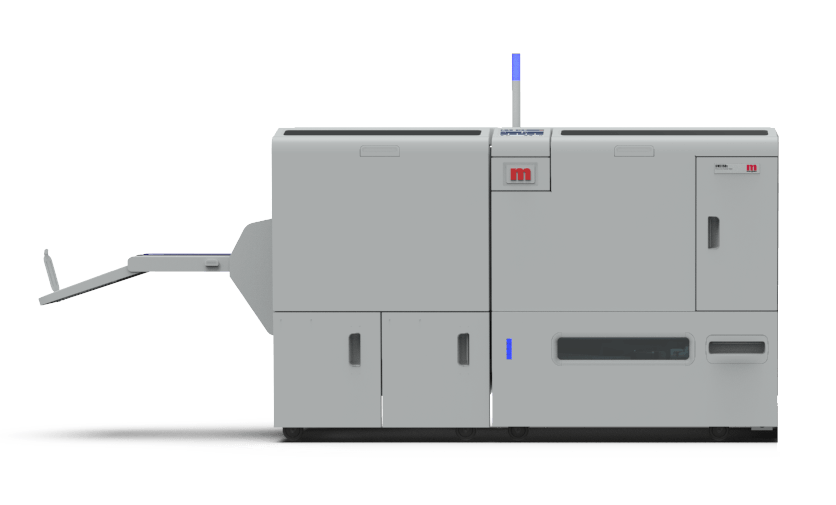

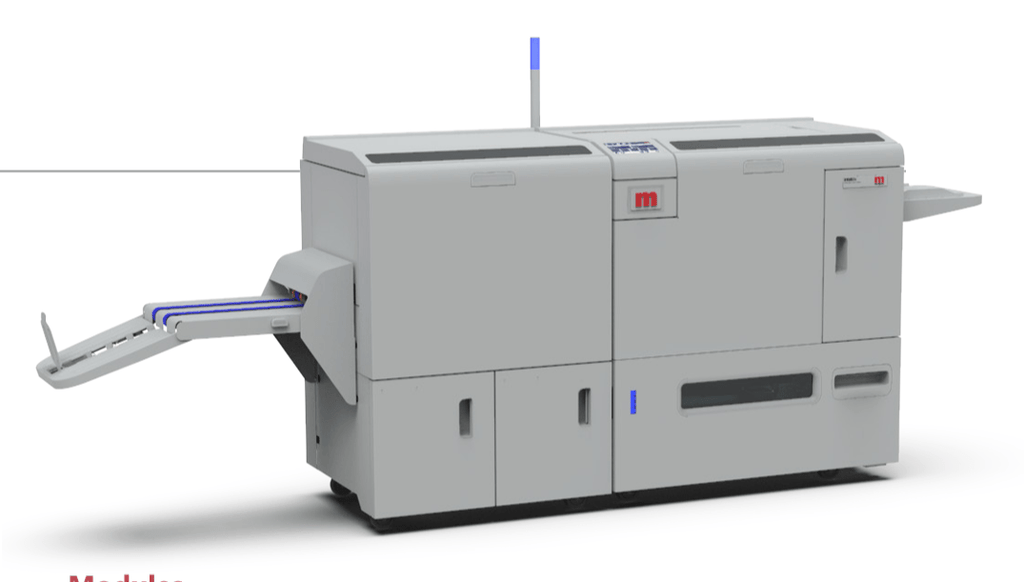

The all NEW Morgana BM5000 series booklet maker series is the latest member of the Plockmatic Group booklet making family. Engineered for mid-to-high volume customers with the highest quality and functionality requirements.
With an increasing number of printing systems available to handle larger cut-sheet sizes, A4 / US letter landscape and oversize booklets can now be produced easily and cost-effectively. The new BM5000 Series delivers these new applications by handling up to 620mm / 24.5″ long sheets.
The BM5035S/5050S, with its optional 4 stitching head configuration, lets you finish jobs that have been imposed 2 up on a sheet, 30 sheets only when using four stitch heads. This functionality offers you higher productivity and reduced costs per book.
Key Features
Morgana BM5035/BM5050
- Paper Size Min: 206 x 210mm / 8.1″ x 8.27″ to Max: 320 x 620mm / 12.6″ x 24.4″
- Stock Range: 65 – 300gsm / 18lb bond – 110lb cover dependent on paper
Set thickness:
- Minimum set thickness: 1 sheet 80gsm / 20lb bond (when folded makes an 4 pageleaflet)
- Maximum set thickness: 3.5mm / 0.39” and 5mm / 0.197” (approx. 50 sheets of 80gsm / 20lb bond)
Book thickness:
- Maximum finished book: book thickness – 10mm / 0.39″ (approx 200 pages 80gsm / 20lb bond)
- Stapling – Easy change, low maintenance, heavy duty staple cartridges
- Staples per cartridge: 5000

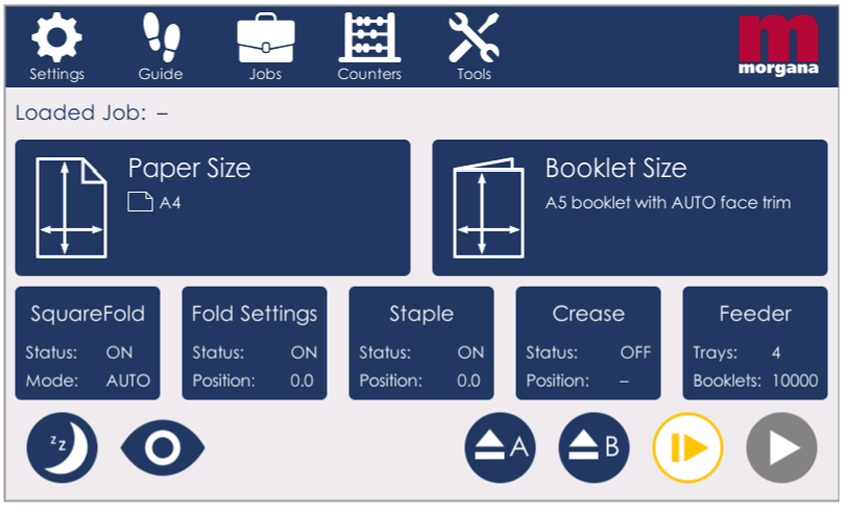

Color graphical interface
Operators are guided through job setup with detailed graphics that can provide step-by-step guidance. Getting professional results has never been easier.
Hand feed capability
This standard feature allows operators to easily drop complete collated sets into the Booklet Maker.
Specifications
Morgana BM5035/BM5050
Paper size minimum: 206 x 210mm / 8.1″ x 8.27″
Paper size maximum: 320 x 620mm / 12.6″ x 24.4″
Stock Range: 65 – 300gsm / 18lb bond – 110lb cover dependent on paper
Minimum set thickness: 1 sheet 80gsm / 20lb bond (when folded makes an 4 page leaflet)
Maximum set thickness: 3.5mm / 0.39” and 5mm / 0.197” (approx. 200 pages of 80gsm / 20lb bond.
Maximum finished book thickness: 3.5mm / 0.39” and 5mm / 0.197” (approx. 200 pages of 80gsm / 20lb bond.
Staples per cartridge: 5000
